Material: EPDM
Color: Black or custom. Delivery time: 10-40 days.
Size: Customizing
Production Technology: Extrusion or molding.
Function: Waterproof, durable, anti-aging and highly tensile.
Temperature: -50 to 150°C (dense part), -35 to 150°C (foamed part).

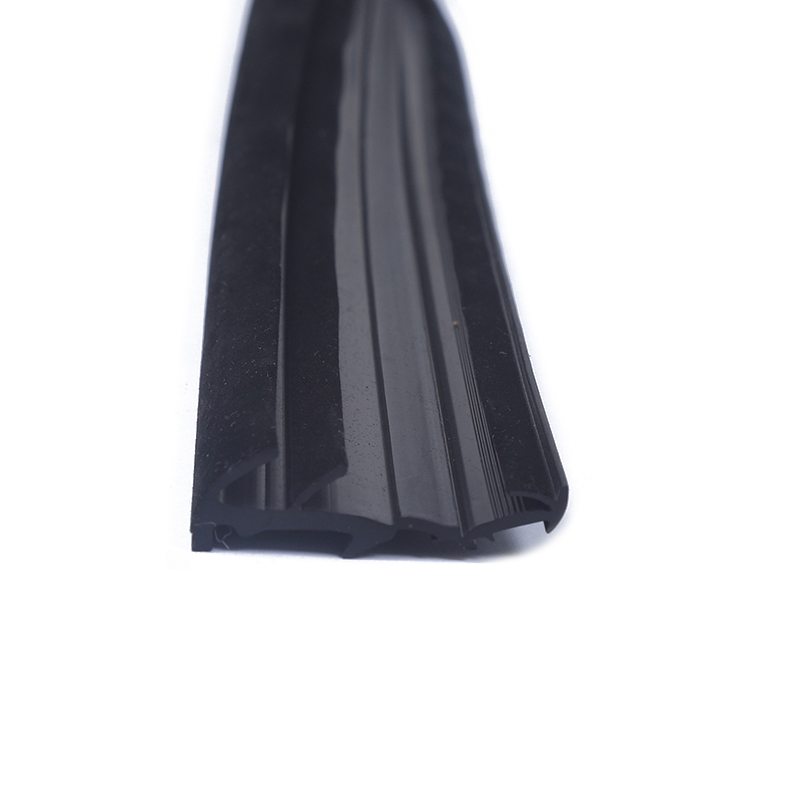

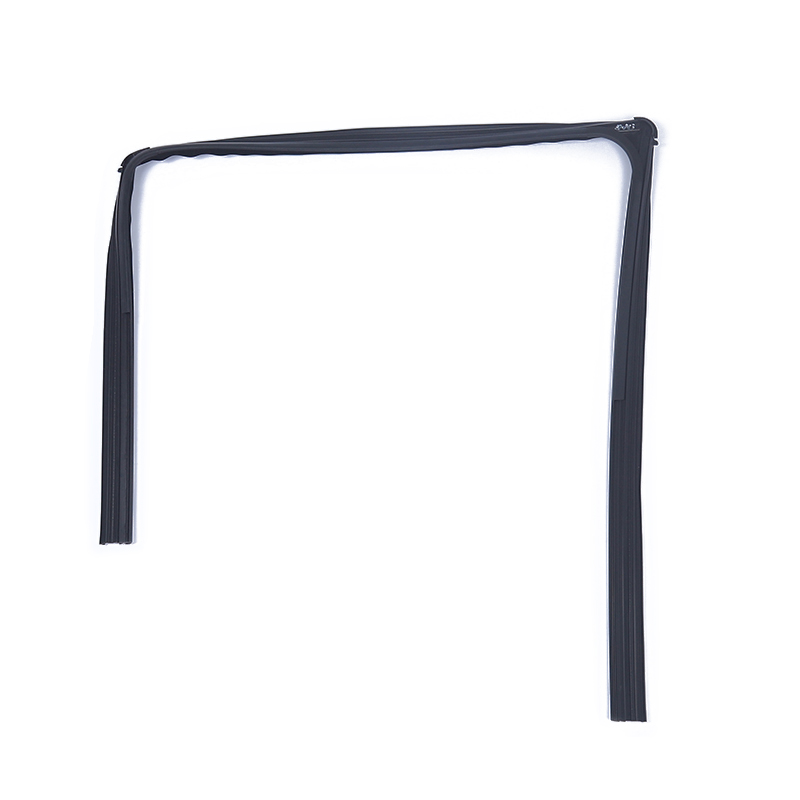

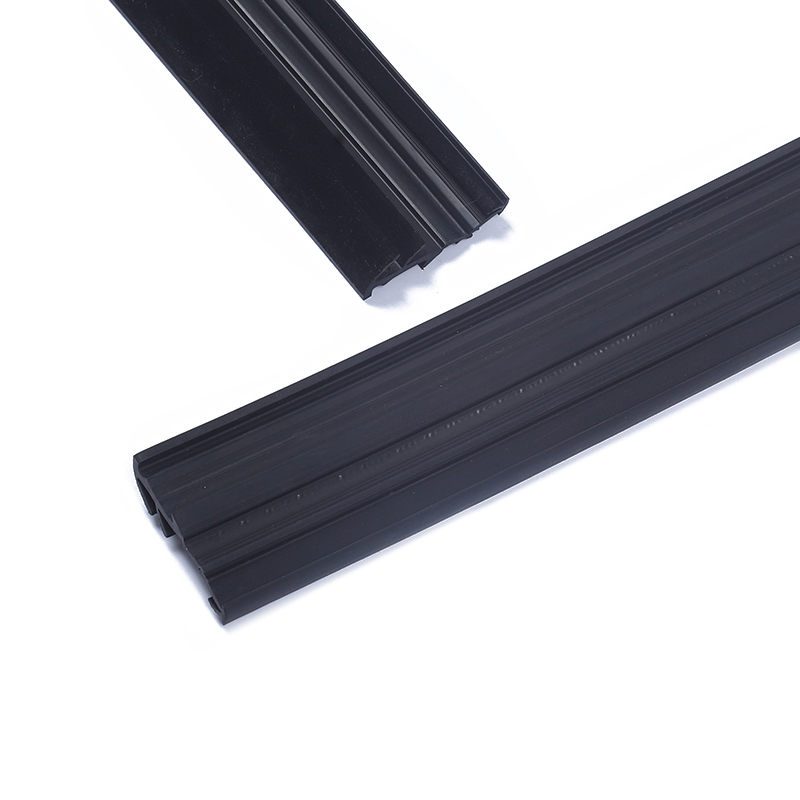

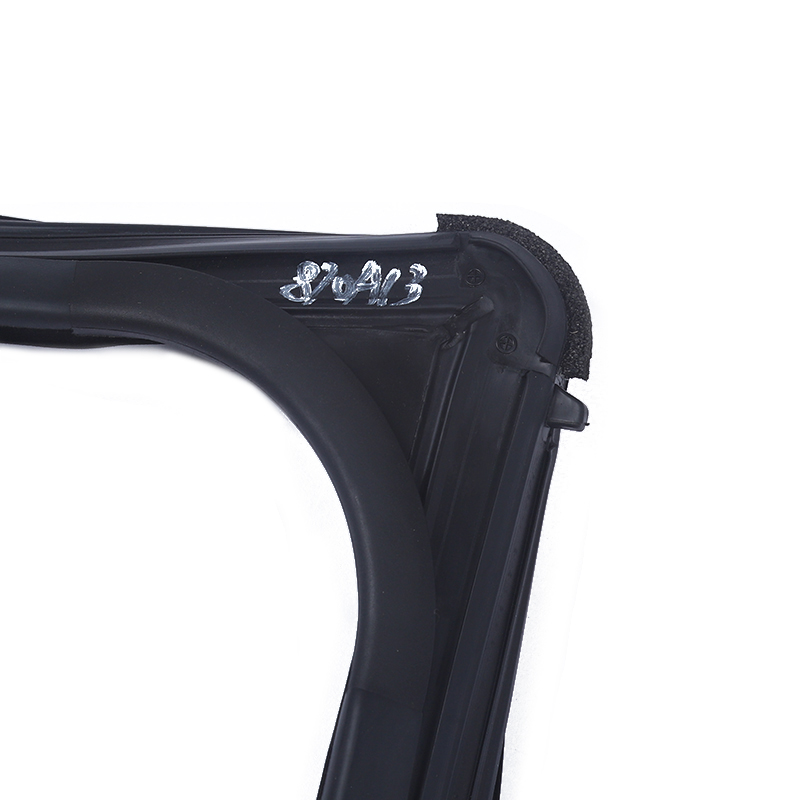

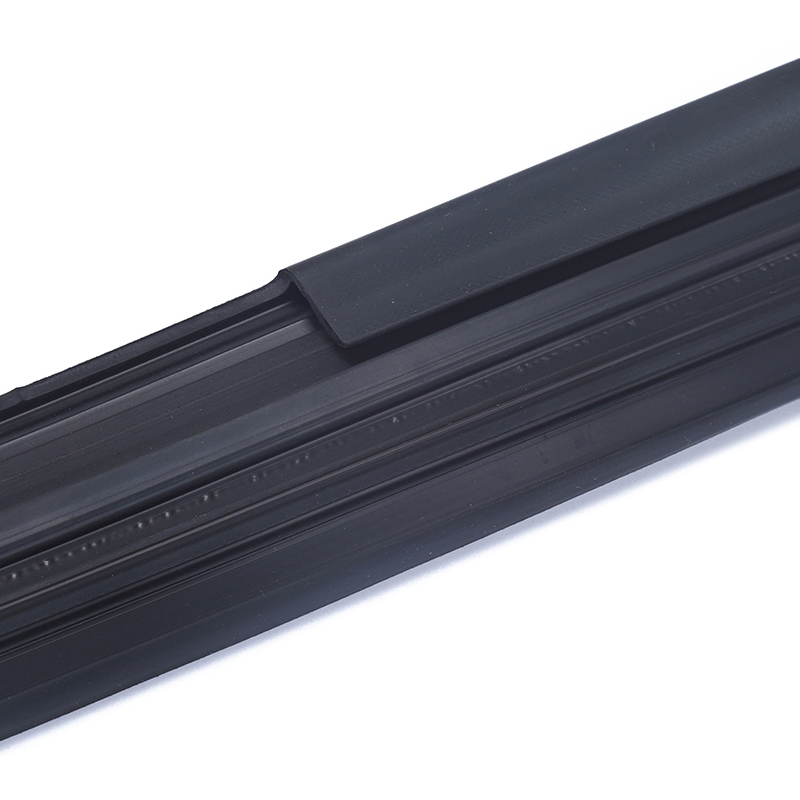

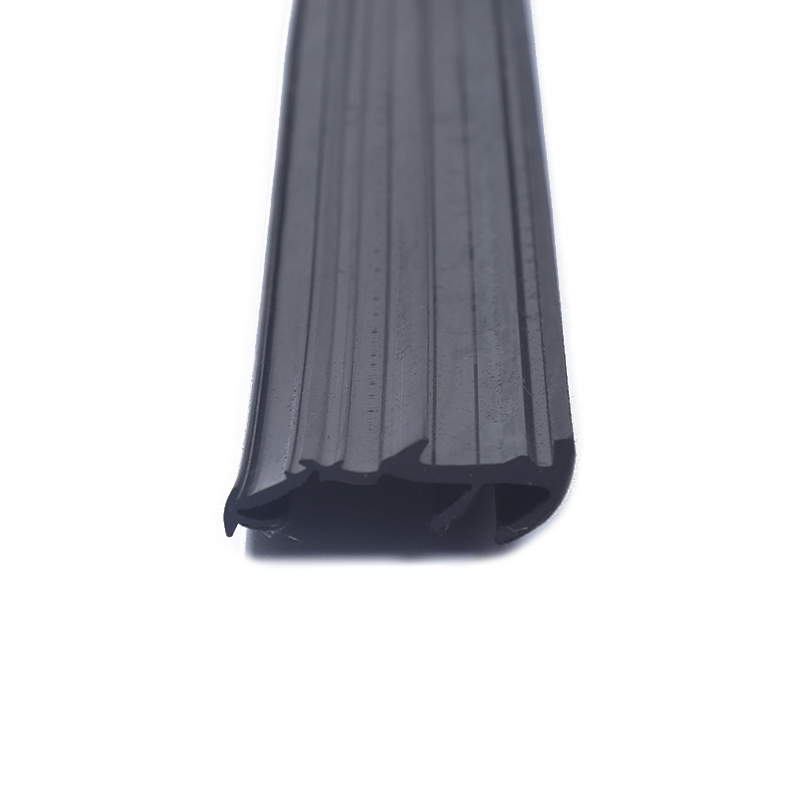

The EPDM Right Front Door Glass Run Channel, also known as a door glass guide groove or automotive window guide seal, is designed for the right front door window system. It is installed along the glass movement path to guide the window glass smoothly during opening and closing while helping reduce friction, vibration, rattling noise, water leakage and dust entry.
Unlike general body weatherstrips used around trunk, roof or door frame openings, this product focuses on the door glass guiding and sealing function. Its profile is designed to maintain stable contact with the moving glass, support smooth window operation and improve the sealing performance of the vehicle door glass system.
Xinqiang manufactures custom EPDM glass run channels according to customer drawings, samples, door frame structures and vehicle window system requirements. We support OEM and ODM projects for automotive manufacturers, Tier 1 suppliers, aftermarket distributors and vehicle sealing system manufacturers.
| Item | Specification |
|---|---|
| Product Name | EPDM Right Front Door Glass Run Channel |
| Alternative Name | Door Glass Guide Groove / Window Guide Seal / Glass Channel Seal |
| Material | EPDM Rubber |
| Structure | Dense rubber / foamed rubber / composite sealing profile |
| Surface Option | Smooth, flocked or coated surface |
| Color | Black or customized |
| Application Position | Right front door glass guide system |
| Function | Glass guidance, sealing, friction reduction, vibration control, dust protection |
| Production Process | Rubber extrusion, molding, cutting, flocking and finishing |
| Size | Customized according to drawings or samples |
| Temperature Range | -50°C to 150°C for dense rubber section |
| Custom Options | Profile shape, hardness, surface finish, length, installation structure and packaging |
| Delivery Time | 10–40 days depending on tooling and order quantity |
Designed for right front door glass guide and window sealing systems
Helps guide the vertical movement of automotive door glass
Reduces friction between the glass and rubber channel during window operation
Helps prevent glass vibration, rattling noise and unstable movement
Supports water sealing, dust protection and wind noise reduction around the window area
Available with smooth, flocked or coated surface for improved sliding performance
Customizable according to door frame structure, glass path, profile drawing or sample
Suitable for OEM vehicle assembly, aftermarket replacement and custom sealing system projects
This automotive glass run channel is specially designed for vehicle door window systems where glass movement, sealing contact and long-term durability are critical. The EPDM rubber material provides good flexibility, weather resistance and aging resistance, helping the product maintain stable performance under daily vehicle operating conditions.
During window lifting and lowering, the glass run channel helps guide the glass into the correct position and reduces direct contact between the glass and metal door frame. This can improve window movement stability, reduce friction noise and help protect the glass edge from unnecessary wear.
For applications requiring lower friction, selected contact areas can be designed with a flocked or coated surface. This surface treatment helps improve sliding performance, reduce operating noise and provide smoother glass movement.
Compared with trunk, roof or door frame seals, this product is more focused on window glass movement control and guide-channel sealing. It is suitable for customized automotive window sealing systems that require accurate profile design, stable compression and reliable fitment.
The glass run channel is installed inside the door frame along the window glass travel path. When the window moves up or down, the channel supports and guides the glass, helping it stay aligned within the door structure.
A properly designed glass run channel can help:
Keep the window glass moving smoothly
Reduce glass shaking and abnormal noise
Improve sealing around the window edge
Prevent water, dust and wind from entering the cabin area
Reduce wear between the glass and surrounding door components
Because different vehicle models have different door frame structures and glass movement paths, the profile shape and dimensions should be customized according to drawings, samples or original vehicle requirements.
EPDM Rubber
EPDM is widely used in automotive sealing systems because of its weather resistance, aging resistance, flexibility and long-term outdoor durability. It is suitable for window guide channels exposed to temperature changes, moisture, sunlight and repeated glass movement.
Flocked Surface
A flocked surface can be applied to the glass contact area to reduce friction and noise during window operation. It helps the window glass slide more smoothly and improves user comfort.
Coated Surface
Coating treatment can also be used to improve wear resistance, reduce friction and support smoother glass movement depending on project requirements.
Composite Profile Structure
For complex automotive window systems, the profile can be designed with different rubber sections to balance installation strength, flexibility, sealing contact and glass guidance.
The EPDM Right Front Door Glass Run Channel is mainly used in vehicle window guide and sealing systems.
Typical applications include:
Right front door glass guide systems
Automotive window run channels
Door glass groove sealing structures
Car window guide seal applications
Passenger car door window systems
SUV and commercial vehicle window sealing systems
OEM automotive glass run channel projects
Aftermarket vehicle window sealing replacement projects
Final fitment should be confirmed according to the vehicle model, door structure, glass movement path, profile drawing or original sample.
Xinqiang provides custom manufacturing services for automotive glass run channels and window guide seals. We can develop products according to drawings, samples, vehicle models and installation requirements.
Available customization options include:
Profile shape and cross-section design
Dense rubber, foamed rubber or composite structure
Smooth, flocked or coated surface treatment
Customized length, width and wall thickness
Shore A hardness adjustment
Cutting, punching, bonding or end finishing
Customized packaging for OEM or aftermarket supply
Our production capabilities include rubber extrusion, molding, flocking, cutting, finishing, sample development and batch production. We can support customers from material selection and tooling development to sample validation and mass production.
For automotive glass run channels, dimensional accuracy and surface quality directly affect window movement and sealing performance. Xinqiang focuses on controlling profile consistency, surface finish, material stability and batch quality during production.
Quality control items may include:
Cross-section dimension inspection
Hardness and elasticity testing
Surface appearance inspection
Flocked or coated surface inspection
Glass sliding contact performance check
Length and cutting accuracy inspection
Material batch consistency control
Packaging and shipment inspection
These controls help ensure that each glass run channel meets the required guiding, sealing and installation performance for automotive window systems.
Q1: What is an automotive glass run channel used for?
An automotive glass run channel is used to guide the movement of door glass during opening and closing. It also helps reduce friction, vibration, rattling noise, water leakage, dust entry and wind noise around the window area.
Q2: Is this product the same as a window sill seal?
No. A window sill seal is usually installed around the door waistline or outer window sill area, while a glass run channel is installed along the glass movement path to guide and seal the moving window glass.
Q3: Can the glass run channel be customized for different vehicle models?
Yes. The profile shape, size, hardness, surface treatment, length and installation structure can be customized according to drawings, samples, door frame design or vehicle window system requirements.
Q4: Can you provide a flocked surface for lower friction?
Yes. A flocked or coated surface can be applied to selected contact areas to reduce friction, improve sliding performance and lower operating noise during window movement.
Q5: What information is needed for quotation?
Please provide drawings, samples, vehicle model, installation position, glass movement path, material requirements, surface treatment requirements, size, quantity and packaging needs.
Q6: Do you support OEM automotive window sealing projects?
Yes. Xinqiang supports OEM and ODM projects, including profile design, material selection, tooling, extrusion, molding, flocking, cutting, sample validation and mass production.
